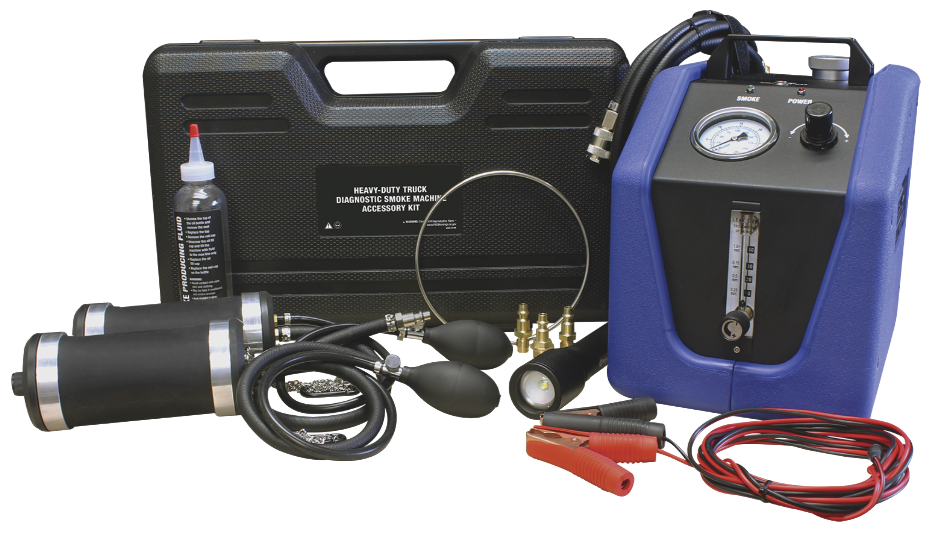

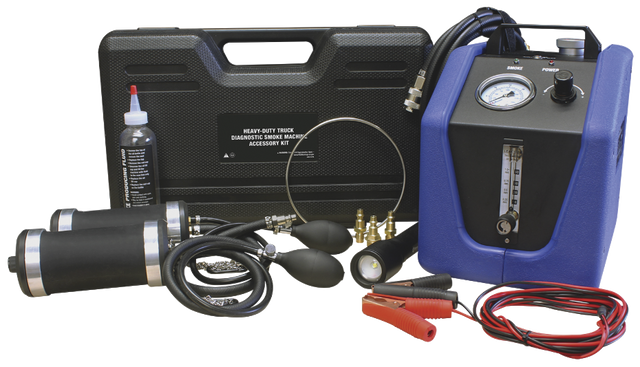

Diagnostic Smoke Machine, Heavy Duty Truck

For all HD truck intakes, exhaust, vacuum lines and components, cabin air and water leaks and much more. Not for EVAP testing

Accessories included: two large inflatable block-off bladders with safety chains, 6” rigid smoke stack ring, pressure sensor port adapter, oxygen sensor port adapter, temperature sensor port adapter, high intensity battery powered smoke illuminating flashlight and 8 oz smoke producing fluid

FEATURES:

• Compact, heavy-duty design for years of reliable service
• Operates on shop air or inert gas
• Quick smoke generation
• Built-in safety pressure relief valve
• Pressure can be regulated from 0 to 28 PSI
• Large easy to read pressure decay gauge 0 to 30 PSI
• Non-toxic and non-corrosive smoke
• 10’ 12V power cables with durable clamps
• Heavy-duty 10’ smoke injection hose
• Velcro strap for hose and power cable storage

SPECIFICATIONS:

• Voltage: 12 VDC
• Input Pressure: Max 100 psi (7 bar)
• Output Pressure: Max 28 psi (190 kPa)
• Safety Pressure Relief: 120 (±5) psi
• Oil Fill Line Indicator: 3.4 oz (100 ml (±10 ml)
• Flow Meter: 0 – 0.040 in. (0 – 1.0 mm)
• Dimensions: 11.8 x 8.1 x 11 in (300 x 205 x 280 mm)
• Weight: 11.5 lbs (5.2 Kg) (Shipping Weight: 22 lbs (10 Kg))
• Power Consumption: Max 6.5 Amps
• Operating Temperature: 0°F to 140°F (-17°C to 60°C )
• Operating Humidity: No Restrictions
• Operating Altitude: No Restrictions
• Vapor Output Hose: 10 feet
• Power Cable: 10 feet
• Pressure Supply: Air/Inert gas

Available Accessories:
43060-DW-LG: Diffuser Assembly – Long
43060-HDBR-9: 9” Bladder Ring
43060-HDLB-9: Large Bladder for Heavy-Duty Truck

43060-OL: 8 oz bottle of Smoke Producing Fluid
