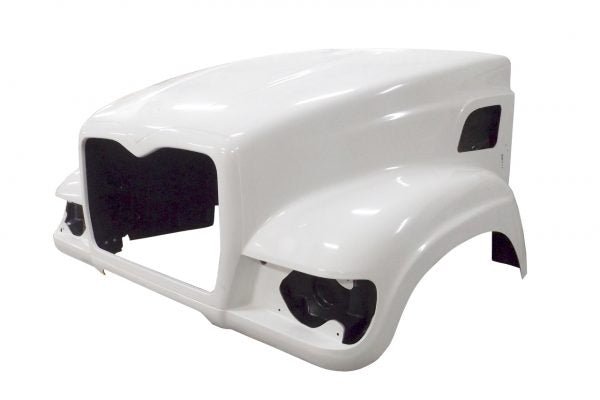

Mack Granite CV513 And CV713 2001 To 2007 Aftermarket Hood

Aftermarket Replacement OEM# 1QM-5872M, 1QM-5872M2, 1QM-5915M2, 25133854, 25133965

Fits: Mack Granite CV513 and CV713 SFA 113″ BBC trucks

• Round air intake in rear brace only
• Center length: 50.50 inches
• Aftermarket 2001 to 2007 Mack Granite CV513 CV713 hood with round air intake
• 113″ Bumper to Back of Cab
• Set Forward Axel trucks (SFA)
• Cofab reinforcement used in high stress areas
• Coremat added to suppress starbursts in high stress areas
• E-coated or galvanized steel hardware used to resist corrosion
• White sandable gel coat finish
• Holes pre-drilled for mounting and accessories
• Includes 10 wire harness clips
• Includes insulation stays
• Includes Nylon grill mounting clips

• Includes hinge plates

• Hap 2001 Certified to fit

Alerts:

• For round air intake in rear brace only
• JP Hood ONLY works with the newer style side grill pieces (OE#s:  25170848/ 25170849 & 41MD54m/ 41MD54M-2), Grill pieces can be purchased at a Mack dealership
• Fender flares can be attached
• We do not pre-drill holes for fender flares
• Trimming of inner fender may be necessary depending on the truck – See instructions
• You may want to cut the rear of the headlight areas to accommodate Mack Part # 25152815 headlight cover.
