Peterbilt - Suspension Air Spring, Replaces 03-01649, 03-02038, 1R12-069

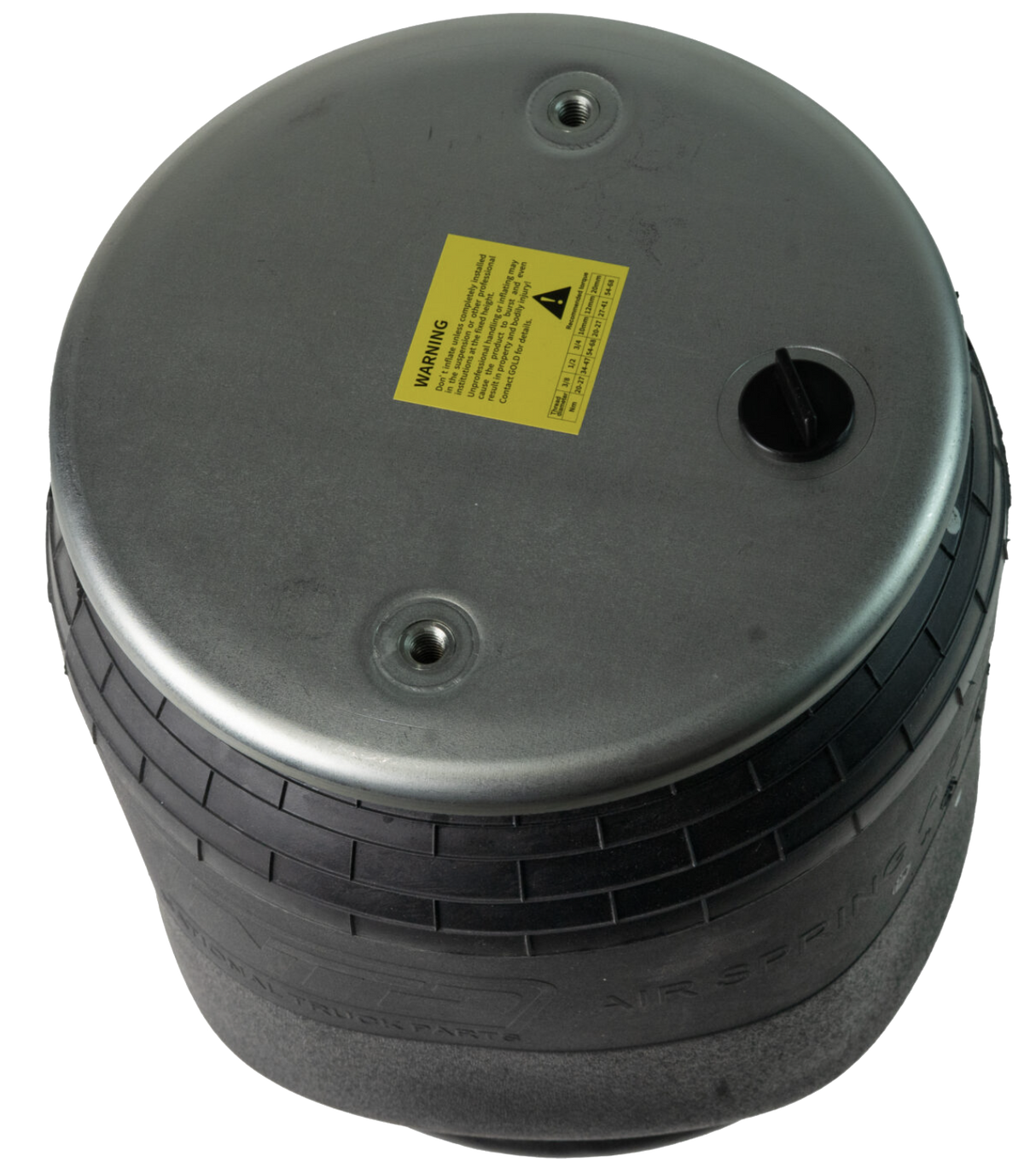

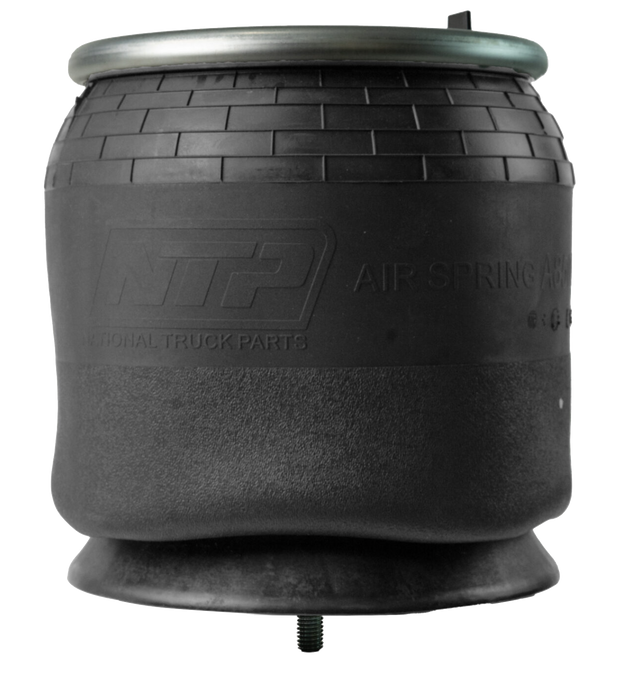

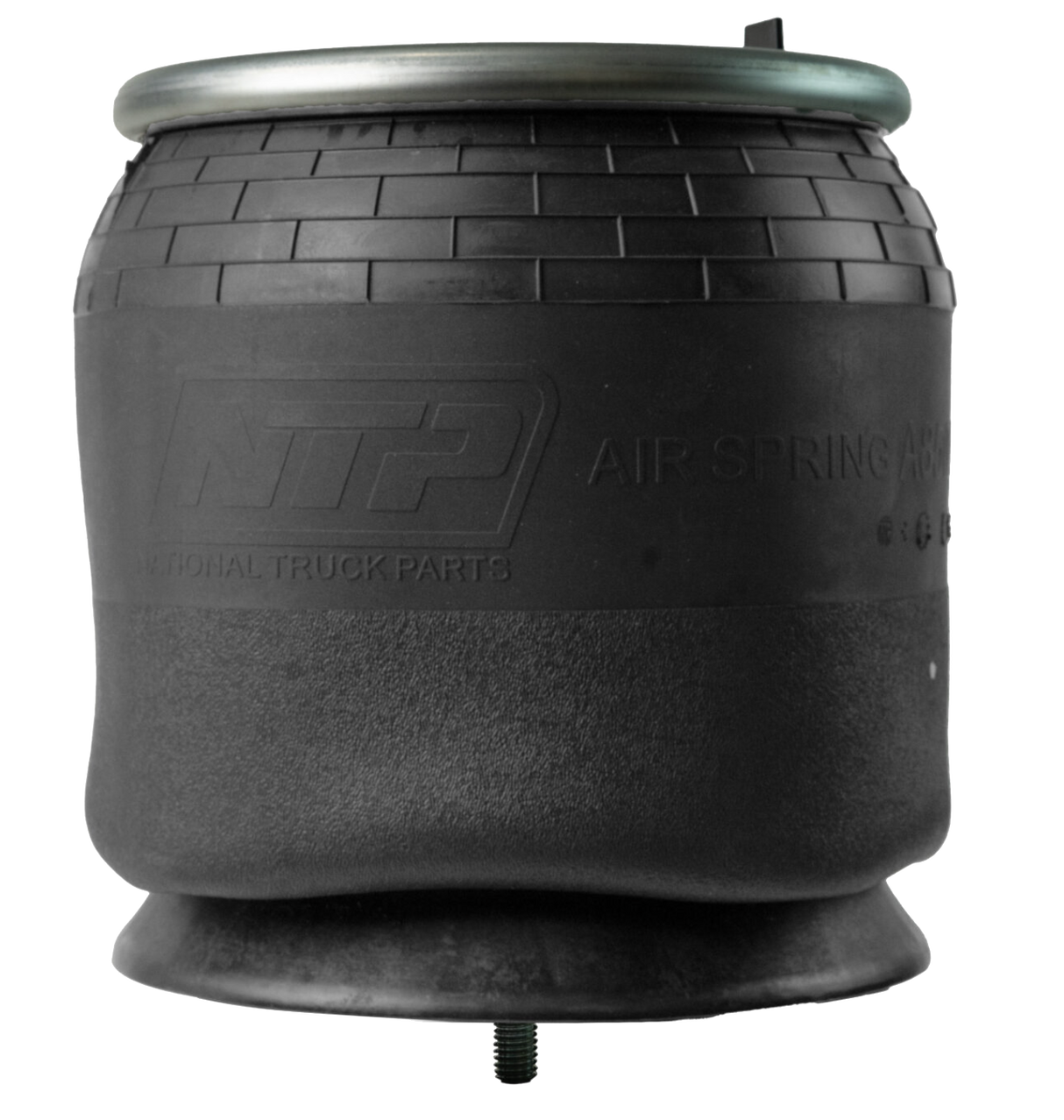

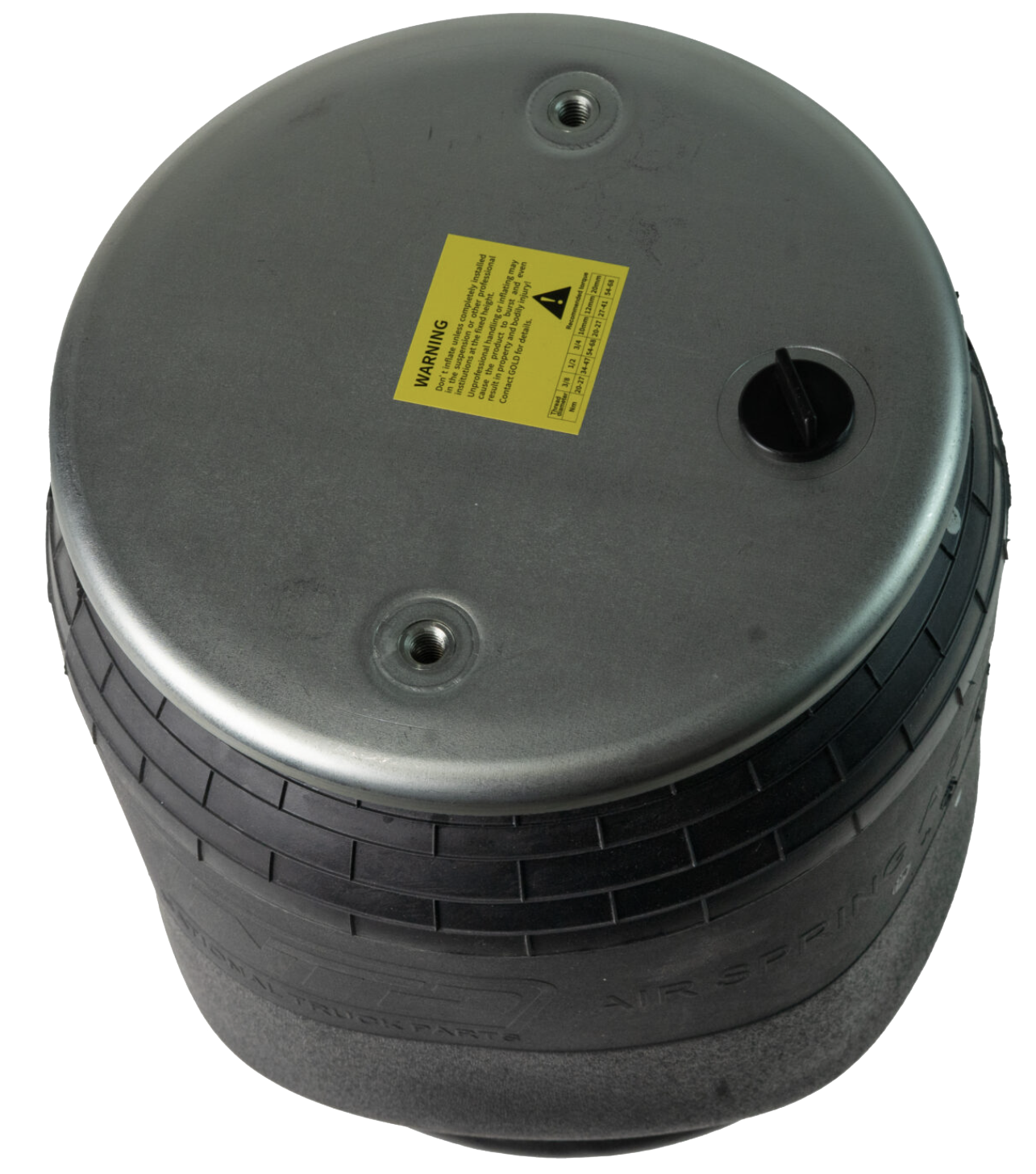

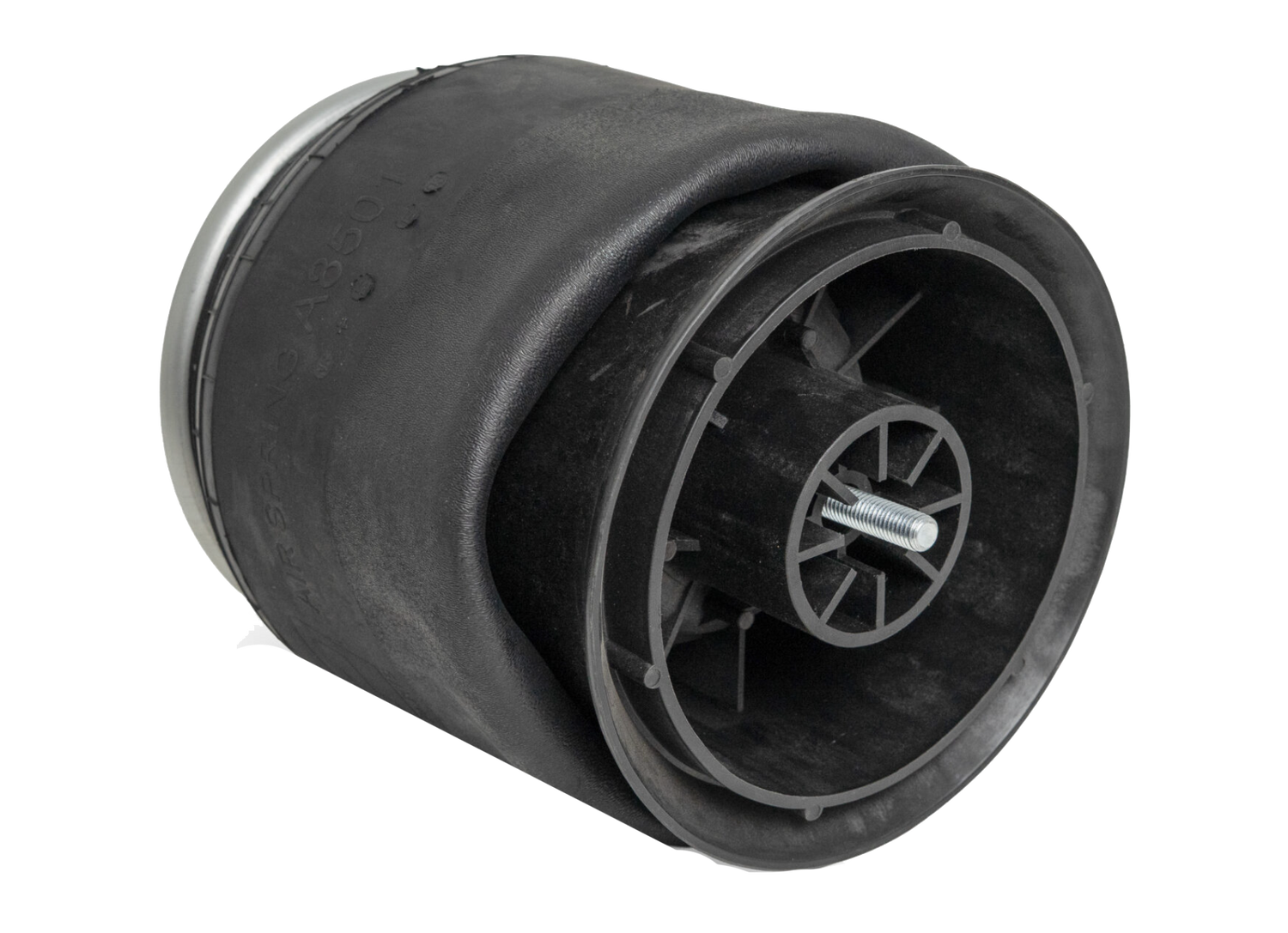

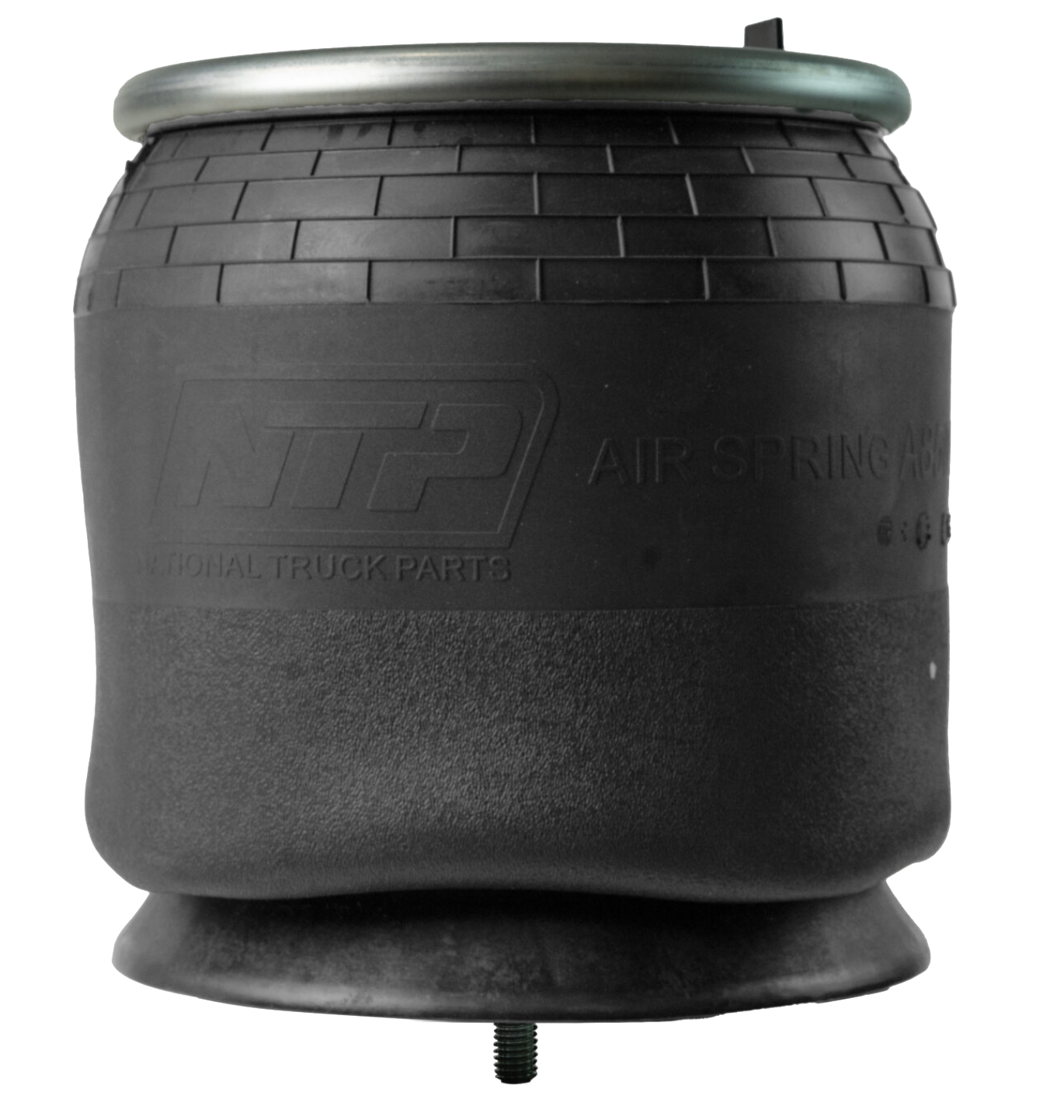

• Suspension Air Spring – 7.50 in. Compressed Height for Peterbilt Trucks
• Replacement Reversible Sleeve Air Spring for Kenworth Trucks
• Extended Height: 18.00″
• Compressed Height: 7.50″
• Top Plate Width: 9.00″
• Piston Width: 9.50″
• Weight: 13.4 lbs

Cross Reference

ALLIANCE: ABP N32 019069
CONTITECH: 9 10-14 P 312 / 161020 / 64274 / 91014P312 / 910-14P312 / 910-14 P 312

DAYTON: 352-9069
FIRESTONE: W01-358-9069 / 9069 / W013589069 / W017038808 / W01-703-8808 / W017038923 / W01-703-8923 / W01-358-8813
GOODYEAR: 1R12-069 / 1R12069 / 1R121069 / 1R12-1069 / 1R12-676
HENDRICKSON: S13031 / S-13031 / 513031
IHC / NAVISTAR: 554764C1 / 554764Cl (possible duplicate with different case)
LOAD GUARD / LOADGUARD: 5C2034 / SC2034
NEWAY: G2299069200 / 57009069
PETERBILT: 0301649 / 03-01649 / 0302038 / 03-02038 / 0302456 / 03-02456 / 0304759 / 03-04759 / 0306746 / 03-06746 / 0307112 / 03-07112 / 0310042 / 03-10042 / 2310042 / 23-10042 / C816022 / C81-6022 / 2456 / 4759 / 6746
TRIANGLE: 8312
VOLVO / VOLVO-WHITE: 85101145
WATSON AND CHALIN: AS-0077 / AS0077
