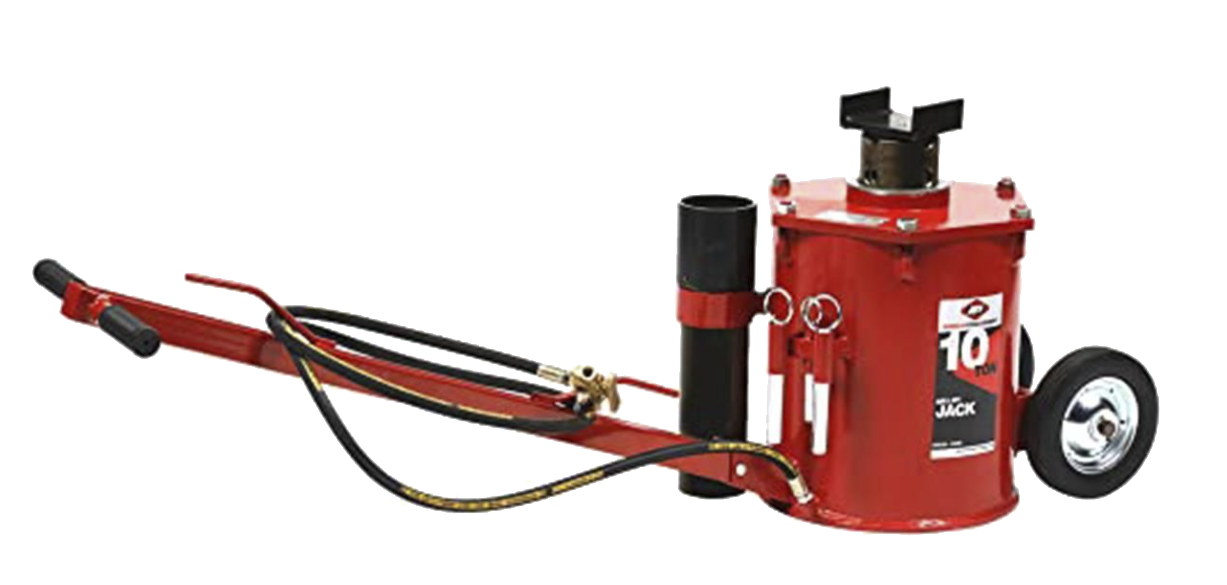

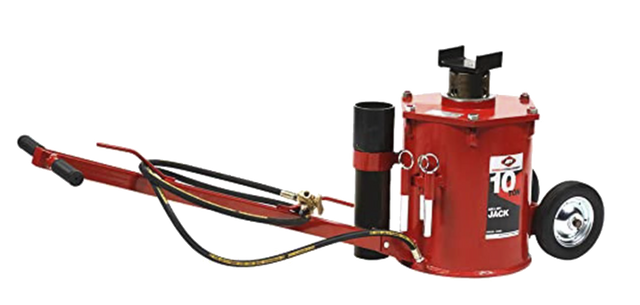

Air Lift Axle Jack - 10 Ton Capacity

Built for heavy-duty shops, fleets, and mobile service, the AFF 10-Ton Air Lift Jack delivers dependable, all-air lifting for trucks, trailers, buses, ag and construction equipment. With a true 10-ton capacity at 200 PSI, extension tubes for multiple lift/lock positions, and large treaded wheels for easy positioning, it’s a rugged workhorse designed to speed up under-axle lifting and reduce operator strain.

Why it’s a shop favorite

• True 10-ton lift at 200 PSI for HD vehicles and equipment.
• 100% air-operated with a smooth, accurate air valve for precise control.
• Extension tube system provides multiple lifting and locking heights; 12" lift travel.
• Removable “T” handle for compact storage and easy maneuvering.
• Large rubber tread wheels roll and position easily—even in tight bays.

Technical Specifications

• Capacity: 10 Ton (at 200 PSI)
• Lift Travel: 12"
• Minimum (Low) Height: 18"
• Maximum (High) Height (with extensions): 52"
• Overall Height: 18.25"
• Length: 27"
• Base Width: 12.75"
• Power Source: Shop air, 200 PSI recommended for full rated capacity
• Shipping Weight: ~172 lb (varies by package) Air-valve control: with featherable lift for accuracy.
• Extension tubes for tailored lift height and positive locking.
• Removable “T” handle and large tread wheels for mobility and storage.

Ships LTL, Call for Shipping Quote
