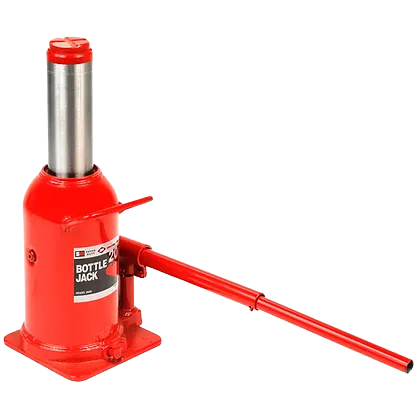

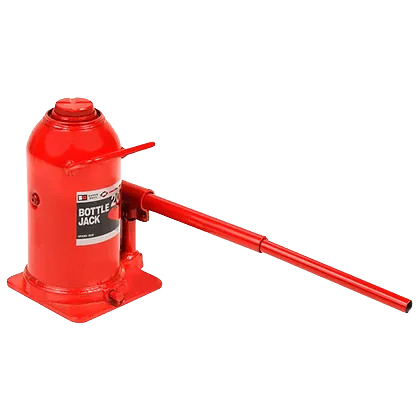

20 Ton Bottle Jack – Heavy-Duty Hydraulic Lifting Power

The Super Duty 20 Ton Hydraulic Bottle Jack is built to deliver reliable, high-capacity lifting for heavy-duty automotive, truck, agricultural, and industrial applications. With a powerful 20-ton (40,000 lb) lifting capacity, this bottle jack is ideal for lifting heavy vehicles, trailers, equipment, and machinery where strength and stability are critical.

Engineered with a rugged steel body and precision hydraulic system, this heavy-duty bottle jack provides smooth, controlled lifting with minimal effort. Its compact vertical design makes it easy to position in tight spaces, while the wide, stable base helps ensure safe operation on demanding job sites or in professional repair shops.

Designed for durability and performance, the Super Duty 20 Ton Hydraulic Bottle Jack is a dependable tool for mechanics, fleet maintenance facilities, construction crews, farmers, and owner-operators who need consistent lifting power they can trust.

Key Features & Benefits

• 20 ton (40,000 lb) lifting capacity for heavy-duty applications
• Hydraulic lifting Power Type: Hydraulic
• Operation Type: Manual
• Minimum Height (in.): 9.62"
• Maximum Height (in.): 18.25"
• Ram Lift (in.): 6.13"
• Extension (in.): 2.5"
• Saddle Diameter: 1.8"
• Base Length (in.): 6.25"
• Base Width (in.): 6.75"
• Handle Length (in.): 16.5"

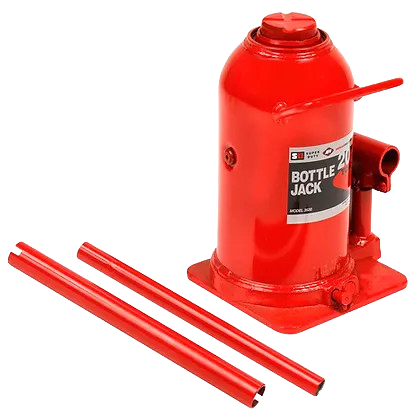

• Number of Handle Pieces: 2
• Oil Reservoir Assembly: Crush Fit
• Base Type: Drop Forge
• Release Type: Cross Head Valve
• Certification: ASME/PASE 2019
• The AFF Heavy-Duty bottle jacks are heat treated in critical stress areas to ensure long life and performance.
• Ideal for use in automotive, truck, farming, mining, and much more.
• Drop forged alloy steel construction for reliable strength.
• Made with centered pumps and rams with heat treated pistons
• Saddles are made of machine hardened steel for unsurpassed strength.
• Built-in bypass system prevents accidental overload and provides added operator safety.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances. Crush Fit Assembly on oil reservoir.

Comes with carrying handle.Whether you’re servicing heavy-duty trucks or lifting equipment in the field, the Super Duty 20 Ton Hydraulic Bottle Jack delivers the strength, reliability, and performance required for demanding lifting tasks. A must-have tool for professional and industrial use.
