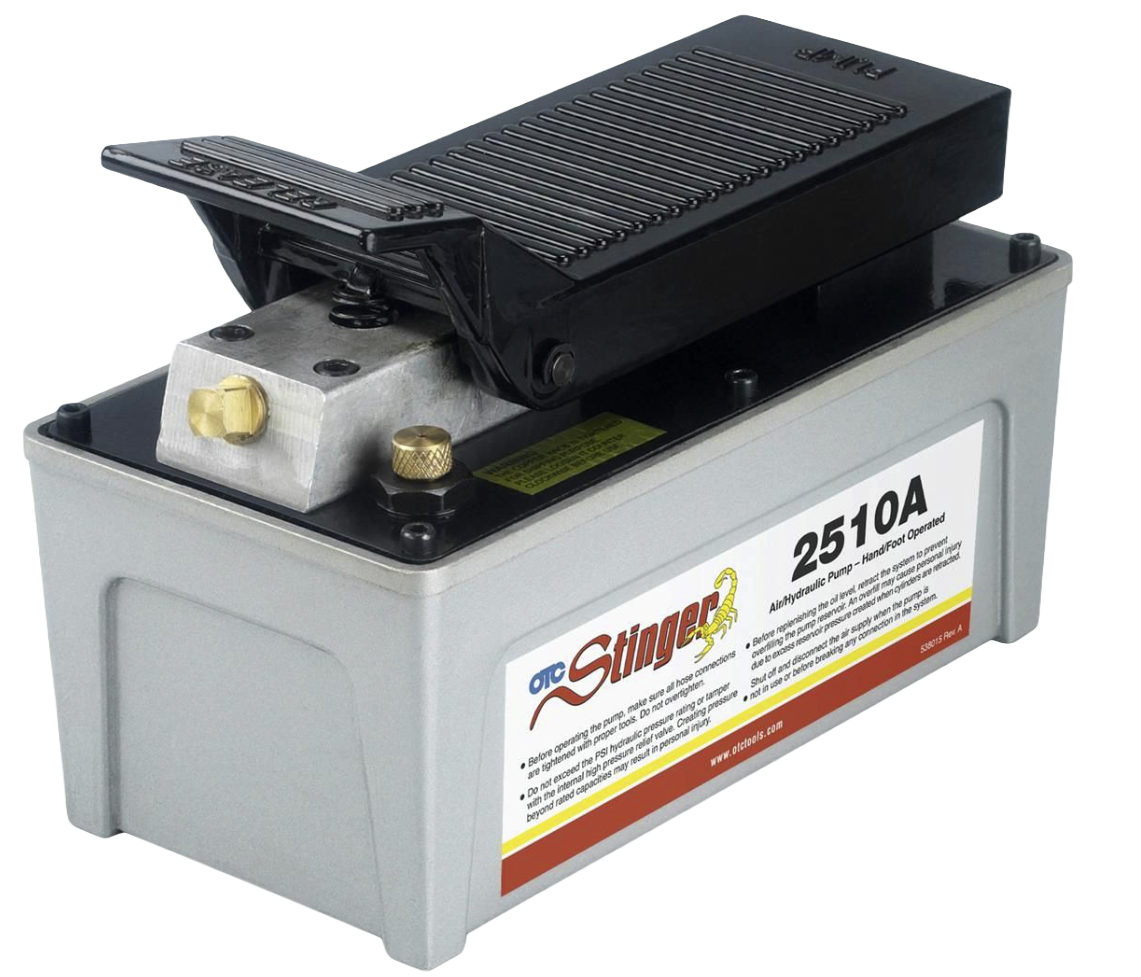

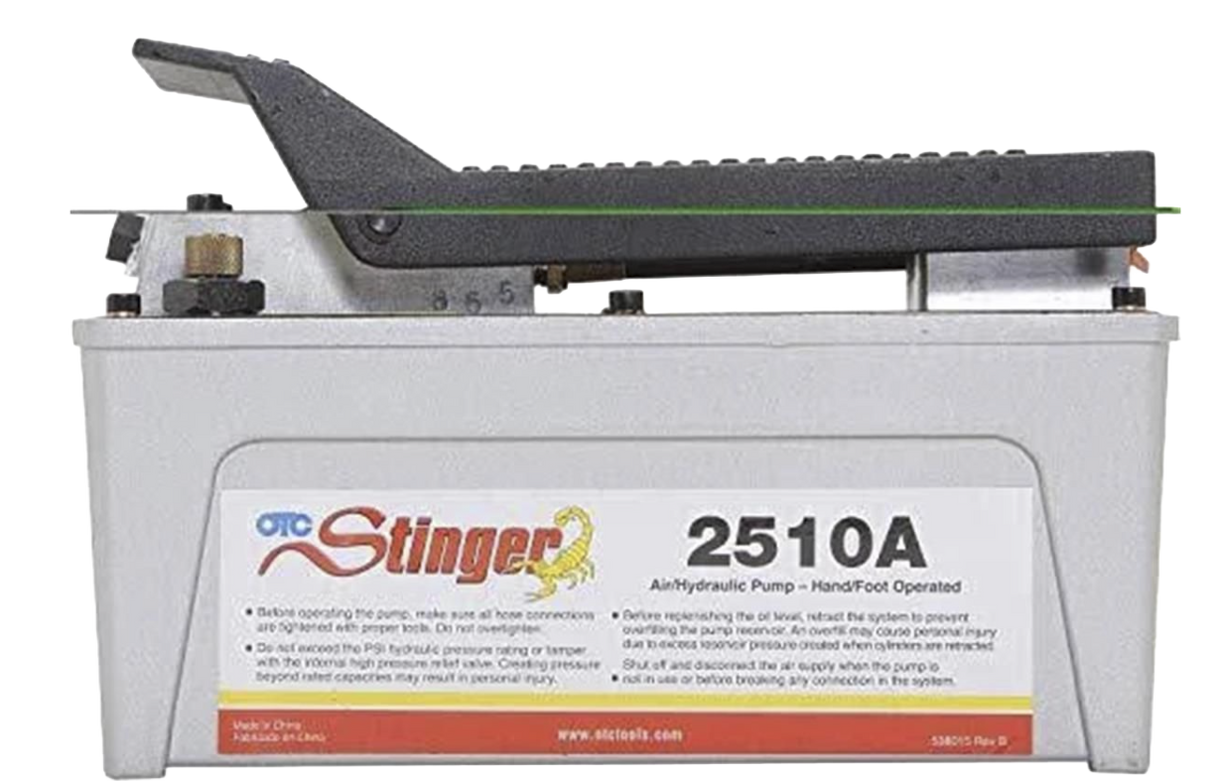

Hand/Foot Operated Air/Hydraulic Pump

With shop air as the energy source, OTC's 2510A 'Stinger' Air/Hydraulic pump has the power and oil capacity (98 cubic inches of useable oil) to drive even the large 55-ton rams.

• 1/4" NPT Air Inlet.
• 3/8" NPT oil port.

With high capacity, quality materials, and robust construction, this unit is an ideal all-around power source for dozens of body, frame, and alignment applications. It can be used with a variety of rams, presses, and hydraulic pullers operating at up to 10,000 PSI.

 An internal relief valve protects the hydraulic components regardless of hydraulic pressure. In addition, a two-stage release mechanism gives fast or metered ram return while reducing hydraulic shock.

Pump requires 9 cfm at 100 PSI air pressure (at the pump). Value is at the core of the OTC tool and equipment portfolio.

For a simple repair or the most complex drivability concern, these award-winning tools universally solve problems faster, and at better value, than any other product line available. Whether it's a specialty tool or unique piece of service equipment, HD Truck Source offers OTC top solutions to modern truck service challenges while increasing technician productivity and shop profits.
