United Pacific  |  SKU: UPI-98011

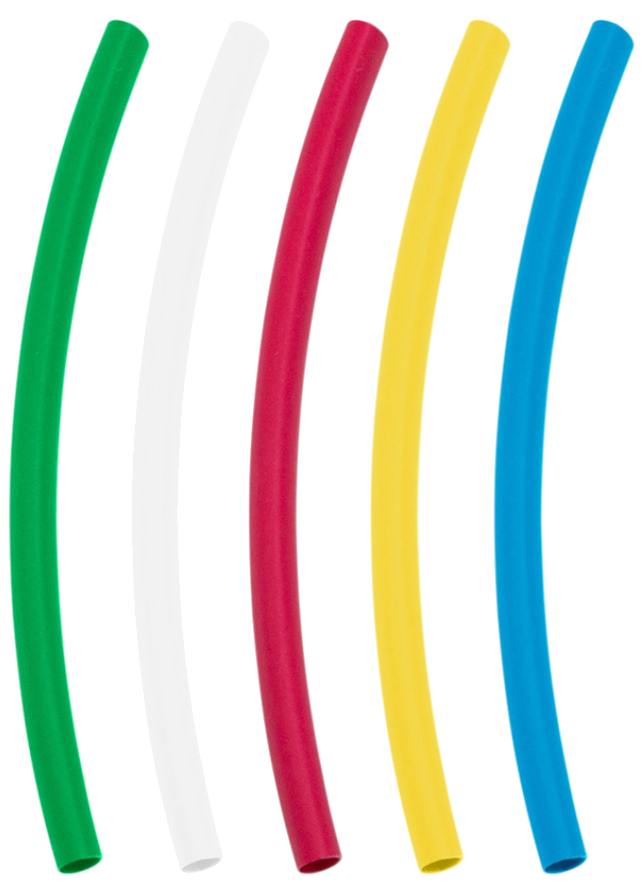

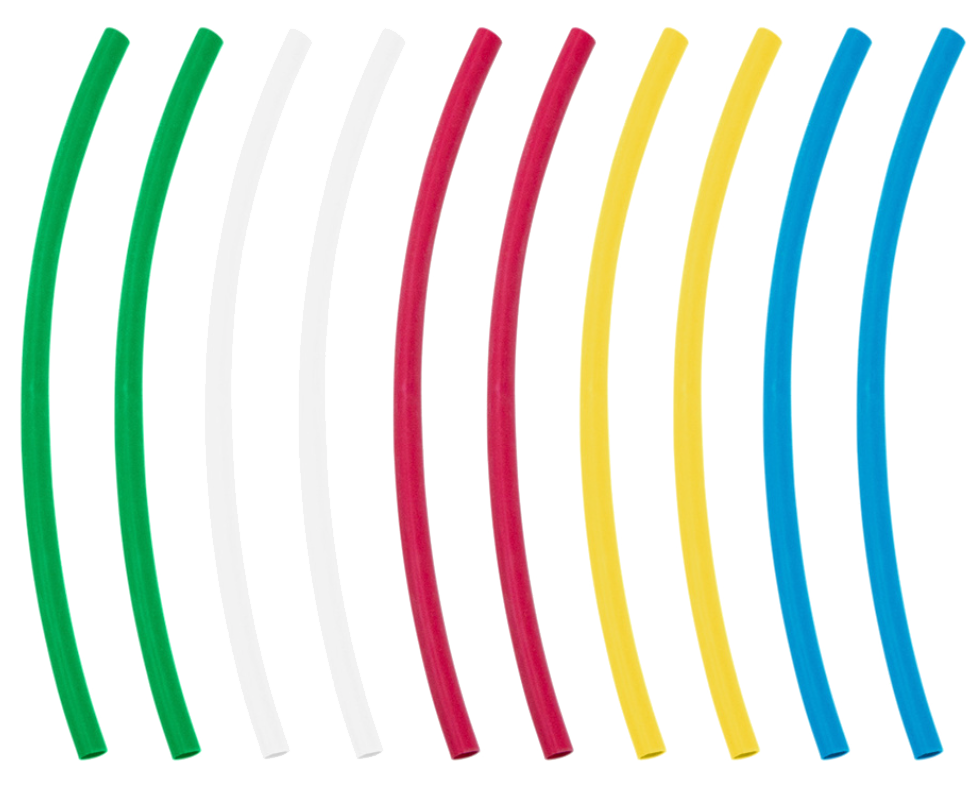

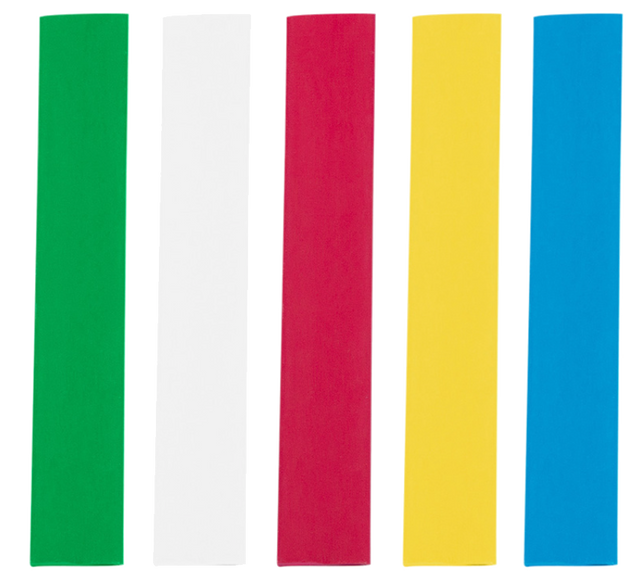

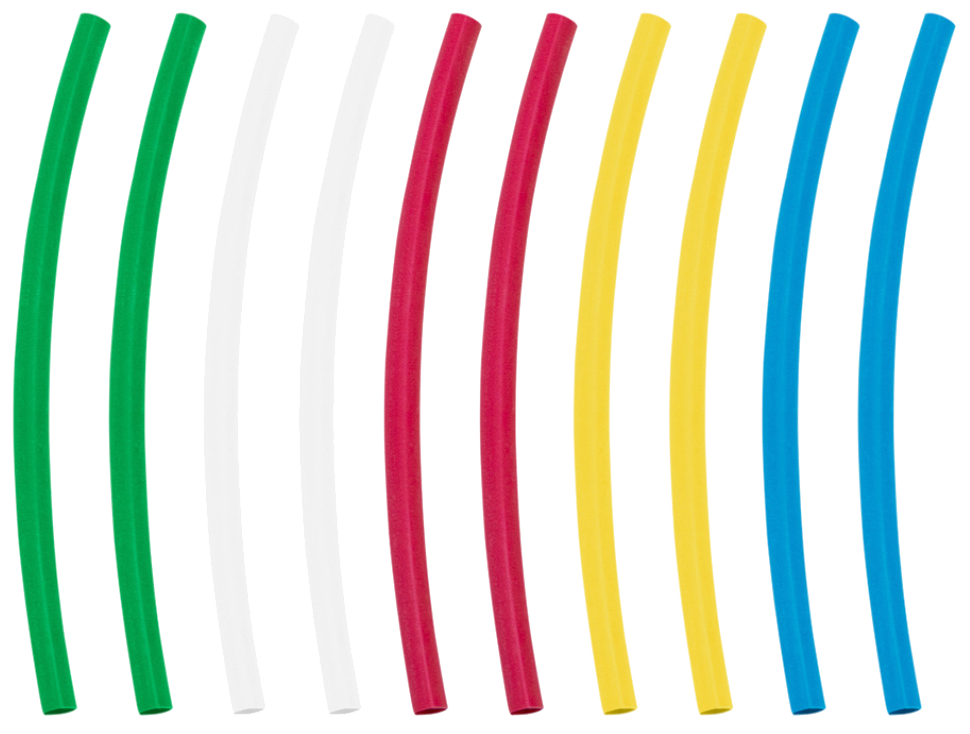

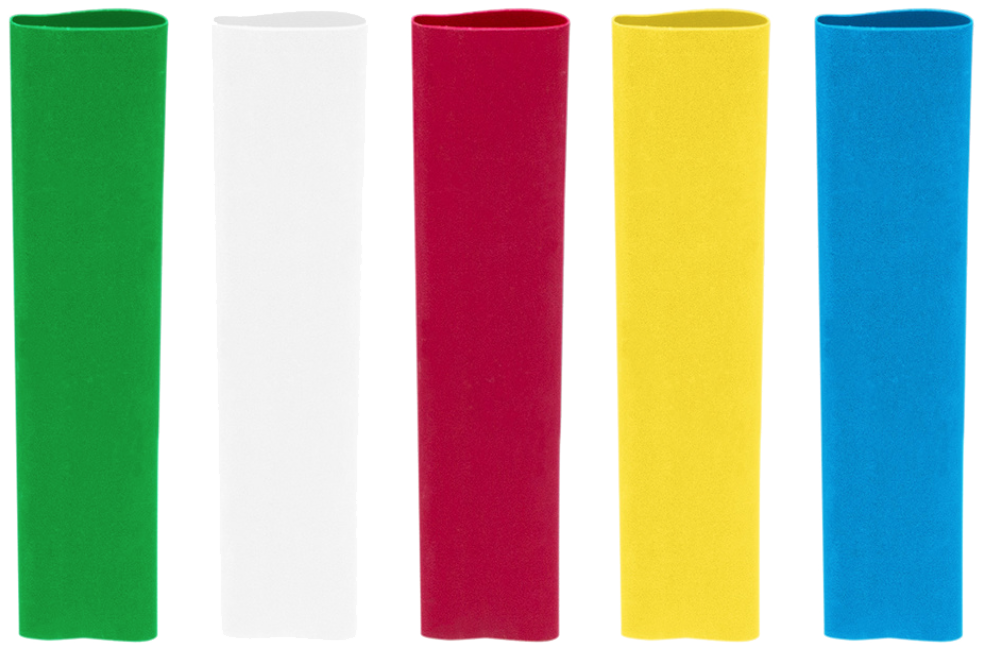

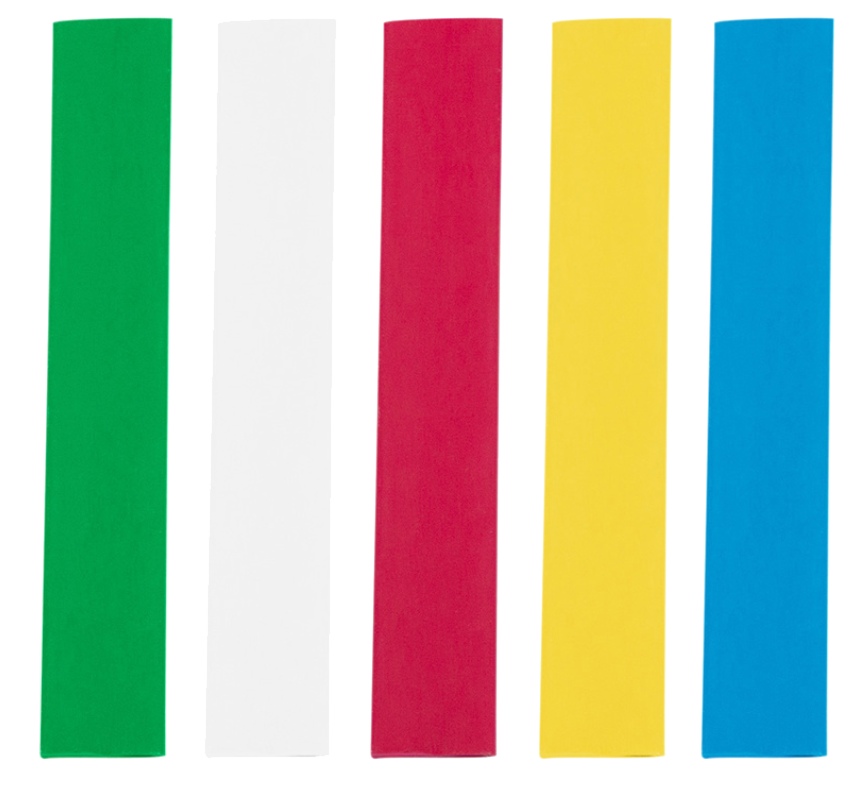

Heat Shrink Tubing Blue, Clear, Green, Red, Yellow, 4" Long

$3.95
Shipping calculated at checkout.
Choose
  • Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
  • Meets requirements of AMS-3636 & AMS-3637.
  • RoHS Compliant.
  • UL Recognized: File E-39100.
  • CSA Certified: CSA LR-38227.
  • ABS Approved.
  • Continuous Operating Temperature: -55øC (-67øF) to 135øC (275øF) & up to 300øC (572øF) for short durations.
  • Shrink Temperature: 121øC (250øF).
  • Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
  • Voltage Rating: 600Volts Maximum.
  • Cross-Linked Polyolefin Heat Shrink Tubing.
  • Single/Thin-Wall.
  • Flame-Retardant. Flammability Rating: UL224 / VW-1.
  • 4" Tube Length
  • NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
