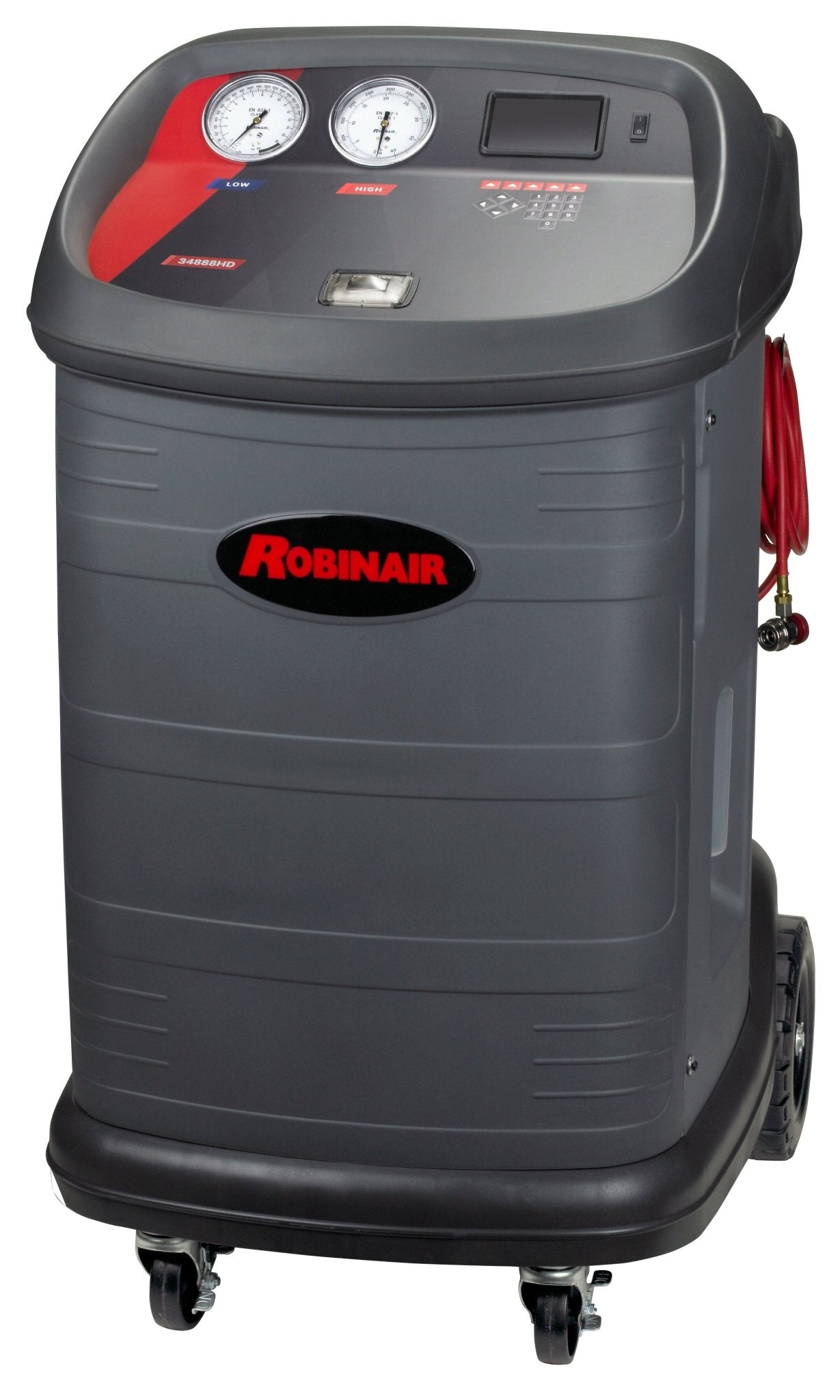

Robinair - Advanced R134A Heavy-Duty Recover, Recycle, Recharge Machine

The Robinair 34888HD heavy duty machine recovers, recycles, evacuates, leak-tests and recharges R-134a with 98.5% efficiency in both small and large mobile air conditioning systems. The new design features a large capacity, removable tank and a liquid pump to tackle those larger A/C systems typically found in buses. The product also is equipped with a nitrogen port which allows a technician to use nitrogen to dry and leak test the vehicle's A/C system. The machine is fully automatic and is capable of recovering, evacuating, leak testing, charging and oil drain/inject – putting A/C lubricant back into the system. The 34888HD also boasts the ability to add a printer for capturing and retaining vehicle service data.

• Operating Temp Range: 32° - 120°F (0°-50°C)
• Recovery Performance: >95% at 70 to 75° F (21 to 24°C) <30 minutes
• Voltage: 125 VAC 60 Hz
• Charge Performance: +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
• Display: 5 cm x 9 cm graphical display
• Filter-Drier Capacity: 300 lb (136kg), spin-on type
• Hoses: 18 ft (5.5 m)
• Weight: Approximately 295 lbs. (133 kg)
• Compressor: 3/8 hp, pressure protected, oiled, hermetically sealed
• Dimensions(HxWxD): 49 in x 28 x 39 (124.5 cm x 71 cm x 99 cm)
• Vacuum Pump: 5.0 cfm Dual Stage, 29.9 InHg
• Languages: English, French, Spanish
• External cylinder: 50 lb DOT R134a-labeled (22.68 kg); 40 lb capacity
• Certifications: SAE J2788
• Warranty: One year
