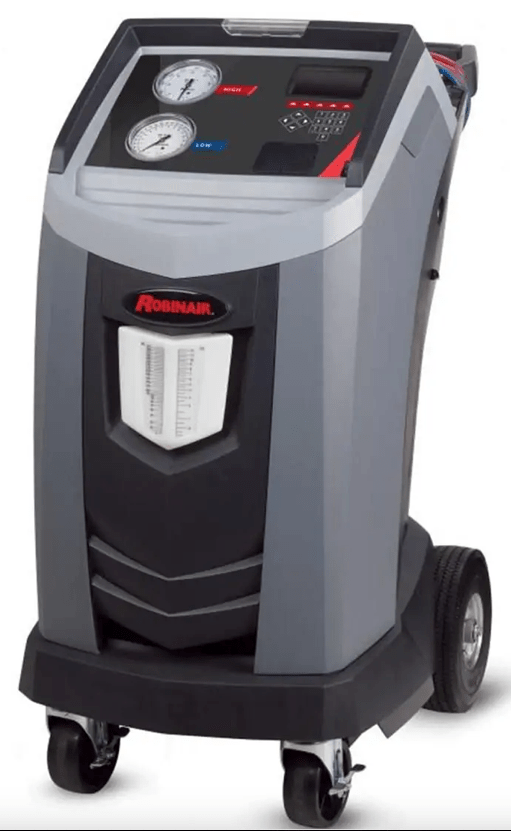

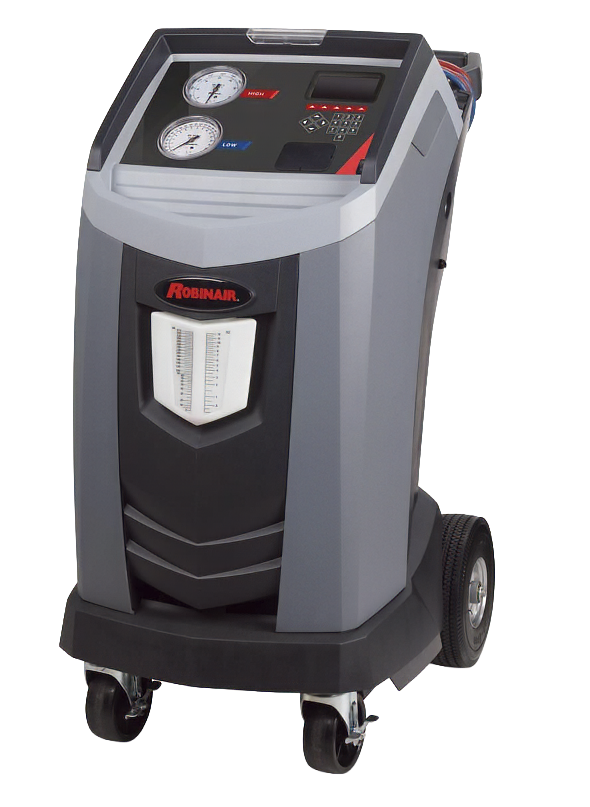

R-1234YF Recover, Recycle and Recharge Machine - Robinair Premier

This is a fully automatic ACS machine that meets or exceeds SAE J2927 and J2843 standards for 1234yf recovery. The machine includes an integrated refrigerant identifier that samples the refrigerant in the vehicle’s A/C system prior to recovery. This is a highly accurate and reliable machine capable of servicing both standard and high-voltage vehicle A/C systems.

• Fully automatic operation — program for service, walk away and return when complete
• 98.5% recovery efficiency
• Charge accuracy within +/- ½ oz
• Automatic internal tank refill. No stopping to fill the internal tank during service, or before service
• Automatic oil drain shows how much oil was removed from the system during service
• Automatic air purge removes the potential of air accumulating in the internal tank
• Integrated refrigerant identifier (meets SAE J2927)
• Programmable vacuum operation helps get to the necessary vacuum level in any condition quickly
• System leak test to identify gross leaks in a system
• Liquid refrigerant flushing function can flush A/C systems or individual components using liquid refrigerant instead of harsh chemicals
• Meets and exceeds SAE J2843 requirement for R-1234YF Recover, Recycle and Recharge equipment

Specifications:

• Dimensions: 107 cm x 56 cm x 80
• Display: 5 × 9 cm (4.3-in. diag) graphical LCD
• Filter Life: 150 kg (330 lb)
• Humidity: 10-50°C (50-122°F), 86% RH non-condensing
• Gauges: Ø 100 mm (3.9 in.)
• Maximum pressure: 31 bar (450 PSI)
• Noise: 70 dB(A)
• Voltage: 115 VAC, 60 Hz
• Oil Bottle Capacity: 355 ml (12 oz)
• Operating Temperature: 10°C to 50°C (50°F to 122°F)
• Power Consumption: 1380 VA
• Vacuum Pump: 1.5 CFM (42 L/m) @ 60 Hz
• Service Hoses: 2.75 m (9 ft) / SAE J2886
• Internal cylinder: 30 lb DOT (13.6 kg); 21 lb (9.5 kg) capacity
• Weight: 82 kg (176 lb)
• Model Number: AC1234-4
• >UPC: 637335045880
• Warranty: One Year
• Optional Printer: Compatible with accessory printer 30038
