Robinair  |  SKU: ROB-16990

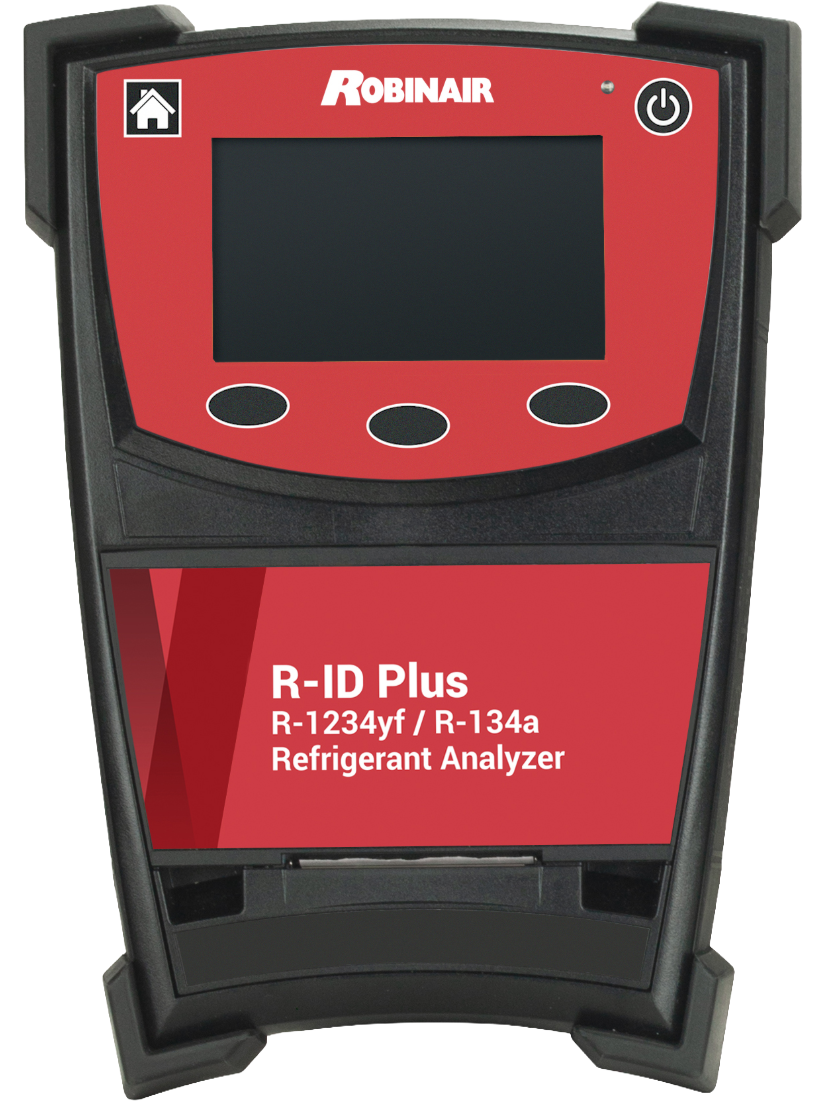

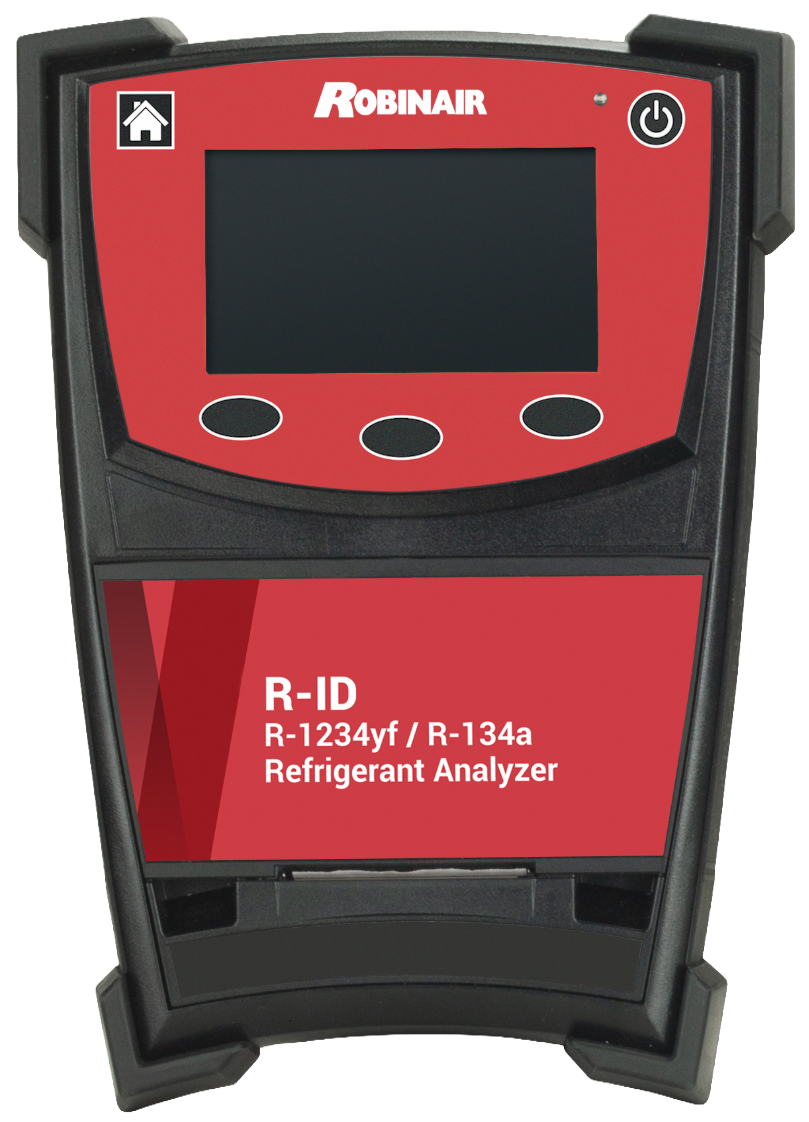

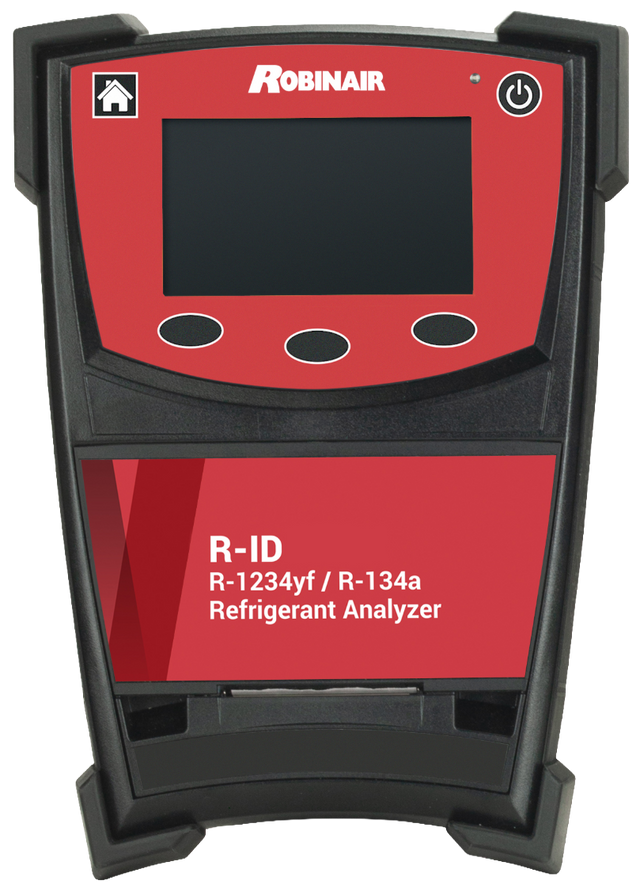

Robinair R-ID Refrigerant Analyzer

$4,989.95
Shipping calculated at checkout.
Models

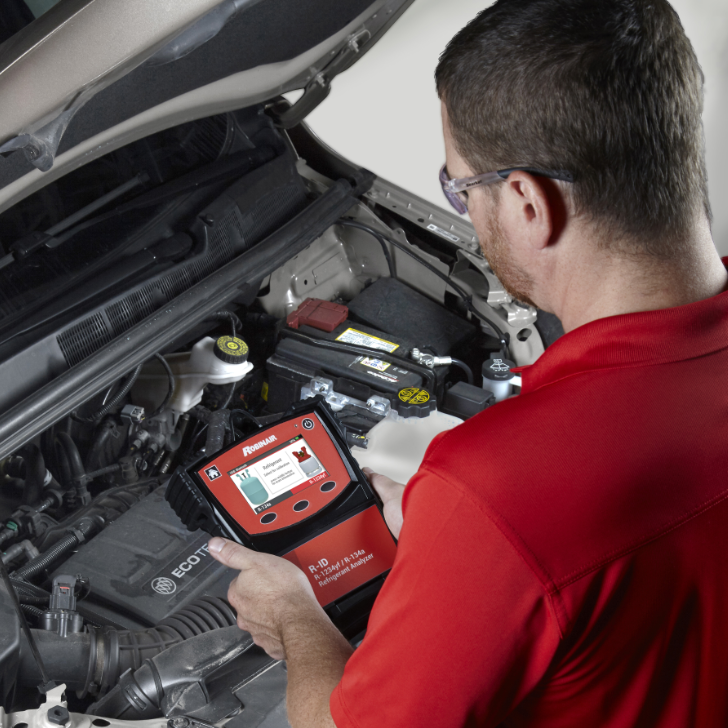

The Robinair R-ID Plus Refrigerant Analyzer is a tool to meet the service needs of technicians working on vehicles equipped with either R134A or the newer R-1234yf refrigerant. It quickly analyzes refrigerant in a vehicle's A/C system to determine if it is good or bad, a requirement of R-1234yf service.

It is certified to the SAE J2912 standard and is capable of connecting directly to any SAE J2843 or J3030 AC service machine that has an external USB port and is not equipped with a refrigerant analyzer. A large, easy to read color display shows results quickly and accurately, helping technicians decide their next step.

The Robinair R-ID Plus comes with an internal printer to print final test results and is .

Specifications:

  • Refrigerants Measured: R1234yf, R134a, and R12
  • Contaminants Measured: R22, Hydrocarbons, Unknown
  • Accuracy: Exceeds SAE J2912 requirements
  • Refrigerant %'s Displayed: R1234yf, R134a, R22, R12, Hydrocarbons, Air and Unknown
  • Operating Temperature: 0 C to 49 C
  • Power: 12VDC @ 1.5 amps
  • Battery: Lithium battery
  • Display: 5.0 inch color LCD display with soft keys
  • Communication Protocols: USB 2.0, (Bluetooth 2.0 Plus Model Only)
  • Languages: ENG, FRE, GER, ITA, POR, SPA, CHI, JAP, KOR, RUS
  • Certifications: CE, UL and SAE
  • Model Number: 16995
  • Warranty: Two Year

Includes:

  • R-ID refrigerant analyzer
  • R-1234yf and R-134a low side service couplers
  • R-1234yf and R-134a cylinder tank adapters
  • (2) R-1234yf sample hoses
  • (2) R-134a sample hoses
  • Battery charging adapter
  • Custom fit storage case
