Robinair  |  SKU: ROB15500

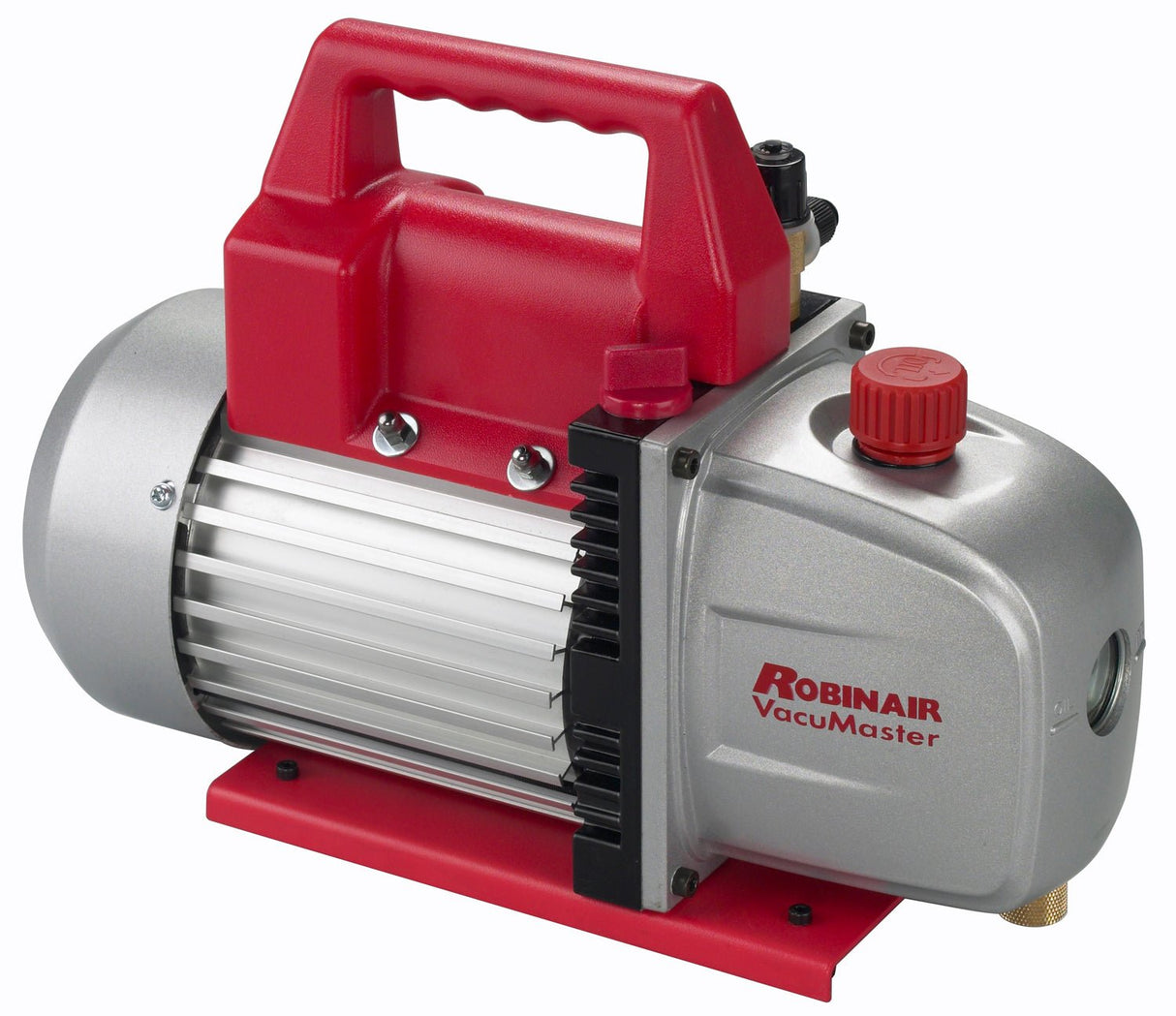

Robinair VacuMaster 5 CFM Vacuum Pump

$299.95 $399.95
Shipping calculated at checkout.
  • Robinair VacuMaster™ vacuum pump features below. See Specifications tab for voltage, micron rating, recommended uses, dimensions and more.
  • 2-stage rotary vane design: Powerful, quiet high vacuum capability for maximum moisture removal and reduced evacuation time
  • Angled oil drain valve: faster, more complete draining
  • Top oil fill port: Better access when refilling oil
  • Cast aluminum body: Lightweight and durable die-cast aluminum reduces weight and creates a strong, durable pump
  • Quality: Performance-tested to meet Robinair's quality, durability and longevity standards
  • Intake screen: Prevents foreign matter from entering pumping chamber. External exhaust filter separates oil vapor from exhaust flow
  • Brass intakes: Reliable brass intake valves with Flare, ACME or both style fittings with tethered caps
  • “No Hassle” warranty: Exclusive over-the-counter replacement warranty. Robinair pumps can be returned to a distributor for an immediate exchange. U.S. and Canada only. In other locations, see your Robinair distributor
  • Multi-use: Designed for use on A/C-R systems using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkyl benzene oil, and PAG oil as lubricants
  • Not for use with ammonia or lithium bromide systems
  • Not for use with A4L or other flammable refrigerants
Specifications: Free air displacement: 5 CFM
Factory micron rating: 35 microns
Stages: 2
Intake fitting: 1/4" MFL and 3/8" Acme 3/8" FFL x 1/2" Acme adapter
Oil capacity: 7.5 oz. (220 ml)
Motor size: 1/3 hp
Voltage: 15V 60Hz
Approvals: CSA
Weight: 28 lbs. (12.2 kg)
Dimensions: 10" H x 5" W x 13" L (255 mm x 123 mm x 336 mm)
Uses: Up to 50 tons (176 kW) tractor/trailers, buses, semis
Cord length: 6' (1.8 m)
Warranty: One Year
