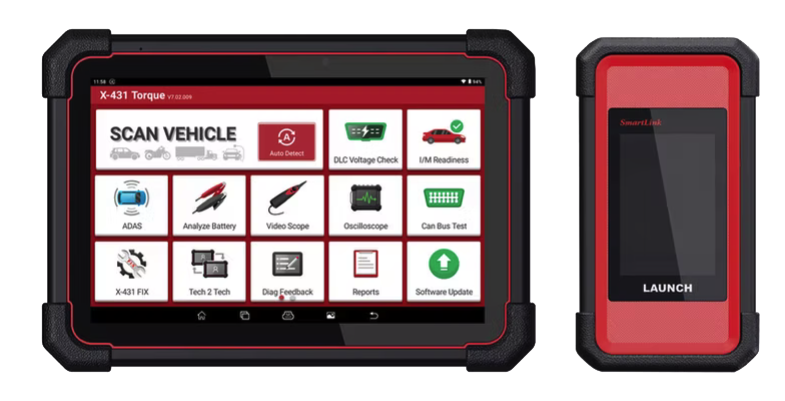

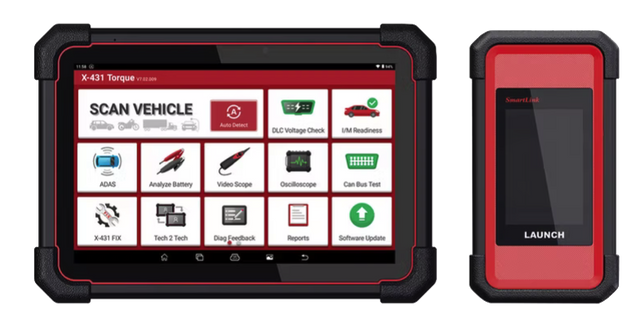

X-431 Torque HD-Truck Pro

The X-431 Torque HD-Truck PRO is a diagnostic solution that supports commercial Heavy Duty Truck Diagnostics. The featured service and calibration functions allow for growing the HD truck segment.

• Integrated with new powerful hardware X-431 Torque Auto HD Pro tablet, and Smartlink VCI,maximum the ability to faster diagnosis
• OE-level U.S. vehicle coverage as well as Asian, European coverage from 1996 and newer
• Read and erase DTCs of light, medium and heavy-duty vehicles (Class 4 through 8)
• Wireless and wired communicates via Bluetooth and USB
• Works on various systems, including Engine, Transmissions, ABS, and Auxiliary from manufacturers such as Wabco, Bendex, and Allison
• Support Cummins, Detroit, Freightliner, Fuso, Hino, International, Isuzu, KW, Peterbilt, Sterling, and Volvo
• Multilingual menu and data display: English, Spanish, French
• Optional ADAS calibration application to calibrate LOW, RCW, AVM, NV, BSD and ACC system accurately.
• Guided VW & AUDI functions/OE vehicle approved Security Gateway access by FCA ce (NEW)
• Code Assist by IDENTIFIX, access most common fixes and repair solutions with corresponding DTC's. (NEW)
• Monitor the vehicle's voltage in real lime during live dia (NEW)

Functions:

• Dpf Regeneration
• Injection Quantity Adjustment
• Bleeding The Adblue Circuit
• Parked Scr Efficiency Test
• Injector Coding
• Reset Service (Mil)
• Maintenance Confirmation
• Reset Pressure Limiting Valve And Calibration
• Participate Filter Replacement Reset
• Trip Reset
• Dpf Ash Accumulator Reset
• Reset Pressure Differential Sensor
• Vgt Electronic Actuator Installation
• Parked Scr Efficiency Test

Calibration:

• Idle Speed Adjustment
• Speed Limit
• Cruise Control
• Idle-Stop System
• PTO
• Coolant Level Switch
• Exhaust Brake Valve
• Intake Air Preheating
• Vehicle Speed Controller
• Air Conditioner
• Oil Pressure Sensor
• Electronic Fan
• ABS
• Automatic Transmission
• Torque AutoHD PRO Specifications:
• CPU 2.0GHz 4-core
• Display: 10.1 inch touch screen
• Memory: 4GB
• Storage: 128GB
• Android 10.0
• Camera: Rear 8MP, Front 5MP
• Battery: 47.88Wh (7.6V, 6300mAh)
• Dimension: 200*110*47 (mm)

SmartLink C Heavy-Duty Module Specifications:

• Display: 3.95", 320*480
• Wi-Fi: 2.4ghz/5ghz
• Communication: Wi-Fi & Bluetooth & Ethernet
• Ram: 256gb
• Storage: 8gb
• Working Voltage: 9v Dc-36v Dc
• Dimension: |200*110*47 (Mm)

ERP Code: 301190908

Software Subscription ERP Code: 307010014
